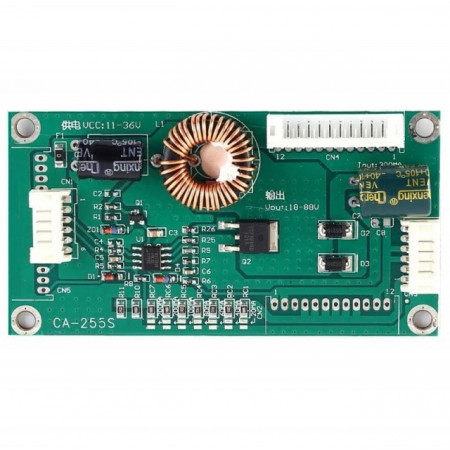

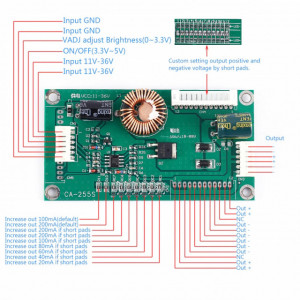

LCD / LED TV Backlight Display Driver Board Module CA-255 CA-255S. Min. 12 inch ÷ Max. 42 inch Constant Current Boost Universal Controller. Power supply: 10,8V ÷ 36V. PCB module size: 45mm x 85mm.
Maximum operating limit parameters:
Vcc-in 11V >> Vout = 18V / Iout = 400mA max. 30W
Vcc-in 36V >> Vout = 88V / Iout = 980mA max. 86W
LED Converter Module Constant Power Supply TV Module Driver Display Backlight / Modul universal alimentare LED TV Backlight CA255 CA255S.
