Descriere

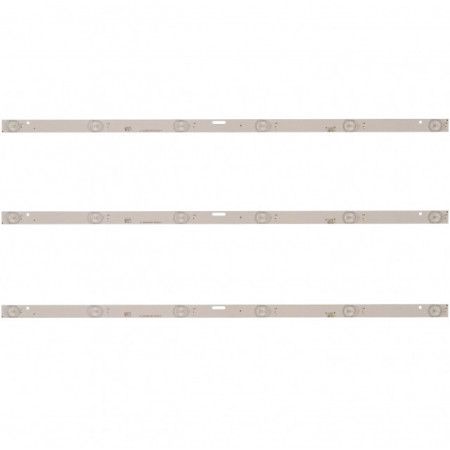

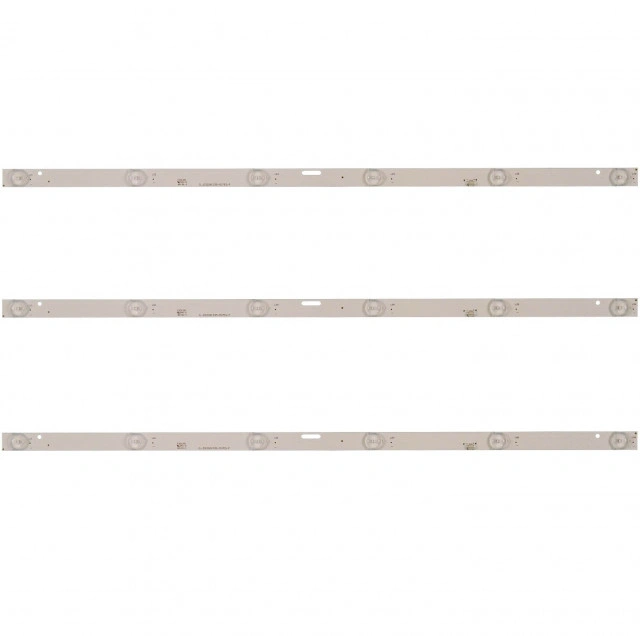

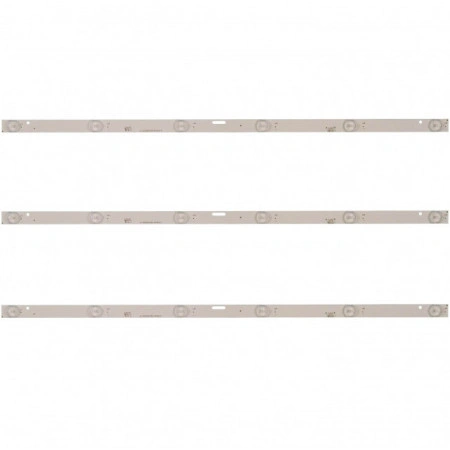

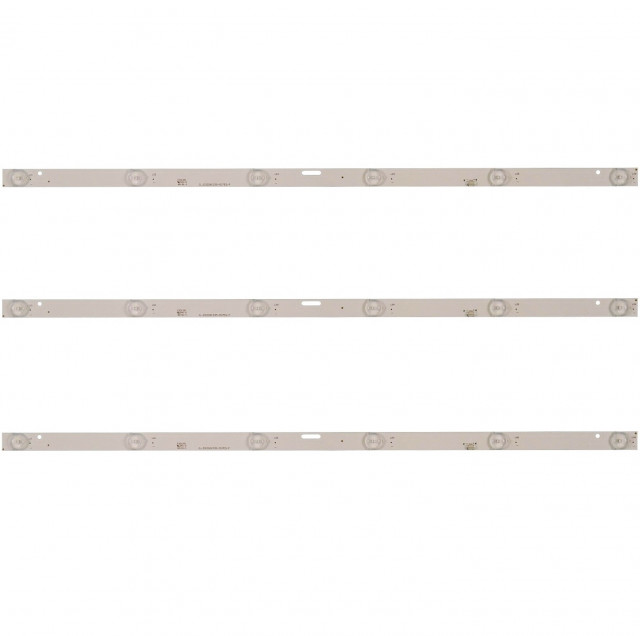

Kit service LED / DLED Backlight Panel TV HD 32 inch. Setul contine 3 barete din aluminiu cu dimensiunile: 575mm - 576mm x 18mm continand 6 leduri 2835 sau 3030 cu tensiunea de 6V / 300mA, mufa 2 pini plasata intre led-urile 4 - 5. Cross Reference: 1.14.FD320005 32LB-3030-2X6-JY CC02320D562V04 CC02320D570V12 JL.D32061235-017ES-F RH43-D3202X-06A-SJ SJ.HLD3200601-2835BS-F. Display / Panel type: HV320WHB-N5B HV320WHB-F70 HV320WHB-N00 HV320WHB-N10 HV320WHB-N55 LSC320AN09. Specificati la comentarii comanda: marca / model aparat si codul baretelor vechi / originale.
Compatibil cu LCD / LED TV marca / model:
Haier HDLED32A8
Konka HD32-D2
Konka LED-W3288A
Konka LED32HD310
Konka LED32HD320
Konka LED32HS36
Konka LED32HS36
Loewe 32LE12J
Modern HDLED32A8
Orfey 32LD101
Saturn LED32HD800U
Saturn LED32HD800US
Saturn LED32HD800UST2
Saturn LED32HD900U
Saturn LED32HD900US
Saturn LED32HD900UST2
Shenko LED32HD32
Summer LED-W3288A
TCL LE32D99
Yushchenko LED32HD310
