Descriere

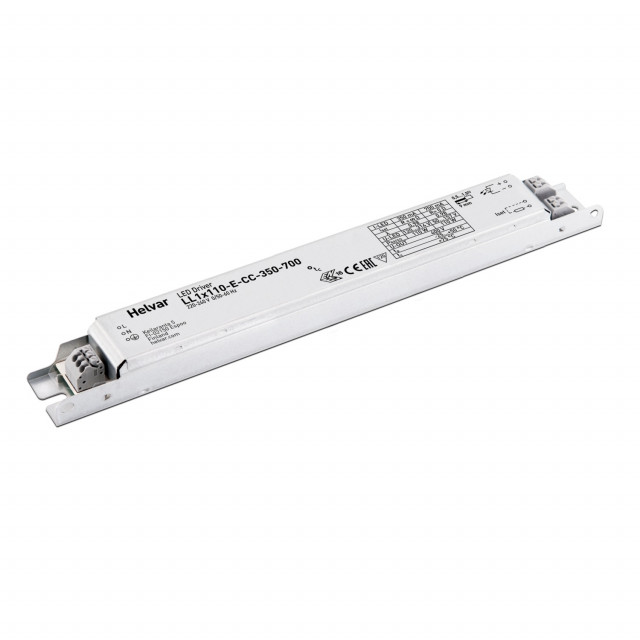

Highly efficient LED ECG with up to 110W, Constant current LED driver, 350 - 700mA adjustable current output. Cross Reference: LL1x110-E-CC-350-700
Mains Characteristics:
Output voltage 50 ÷ 157VDC, max. 400VDC
Output current 350 ÷ 700mA
Supply voltage 176 ÷ 280VDC, 198 ÷ 264VAC
Body dimensions 280x 30x 21mm
Protection short-circuit
Operating temperature -20 ÷ 50°C
Electrical connection terminal block
Adjustable output current level
Efficiency 95%
