Descriere

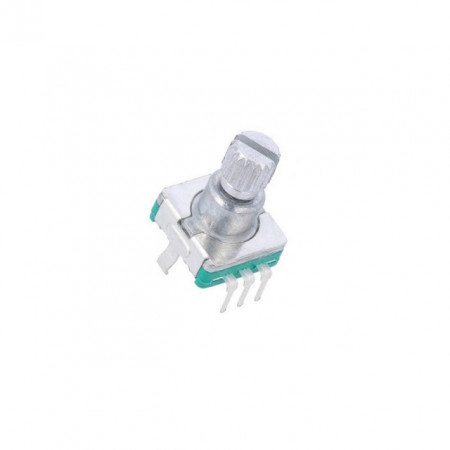

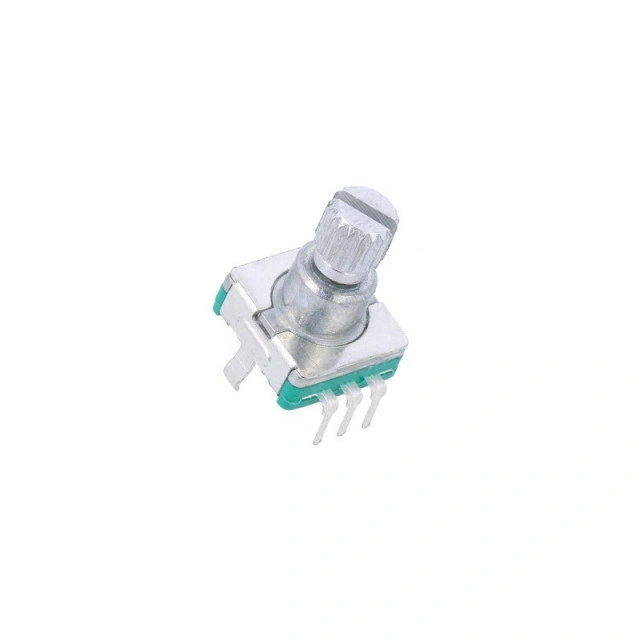

Incremental Rotary Encoder for Audio Device: Akai Denon Harman-Kardon Kenwood LG JVC Marantz Onkyo Pioneer Sansui Sony Yamaha. Resolution 15 imp/revol with push-on switch. Average life: min. 30000 cycles. Cross Reference: EC11E12-15P30C-SW
Manufacturer Alps / SRP
Mounting THT
Resolution 15imp / revol.
Output signal two phase A and B
Mechanical durability 30000 cycles
Max. operating current 5mA
Shaft surface knurled
Shaft length 7mm
Operating voltage 5V DC
Shaft diameter 6mm
Number of positions 30
Encoders features with button
Thread length 5mm
L shaft length 12mm
Body dimensions 11.7x 13.75x 6.5mm
Terminal pitch 2.54x 14.5mm
