Descriere

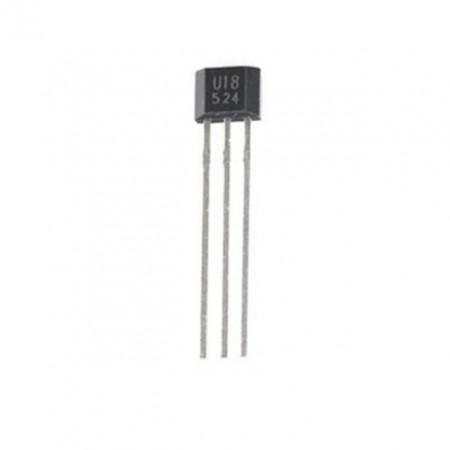

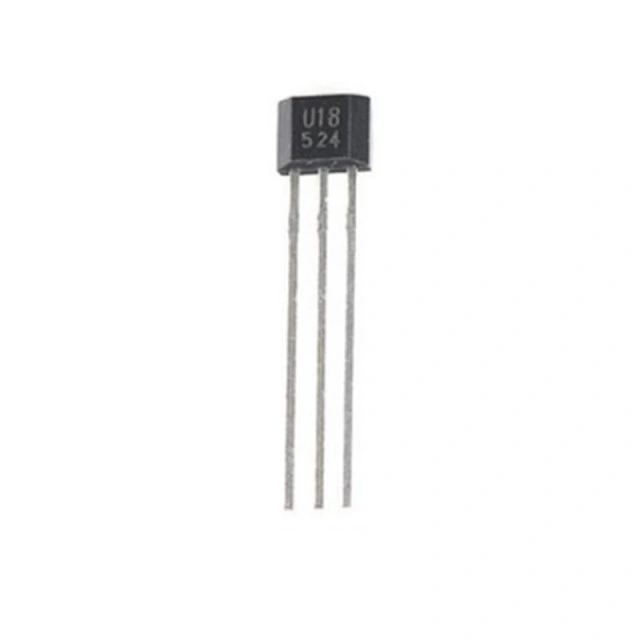

Bipolar Latch type Hall Effect Sensor / Magnetic Detector / High Temperature Operation, SIP3 / TO92 case. Operating in Alternative Magnetic Field. Supply Voltage Range VCC=2.5 to 20V. Wide temperature operation range of -20 ~+125C. TTL and MOS IC are directly drivable by the output. Cross Reference: 41F 44E 49E 188 3144 3503 A3144 OH137 OH188 U18-524 US1881KUA.
Application:
Angular sensor
Brushless DC motor commutation
Contact-less sensor
Current sensing
Linear Compass
Motor control
Position sensor
Proximity detection
Reel Sensor
Rotation sensor
Solid state switch
Speed sensor
